Corridor Feature Lighting

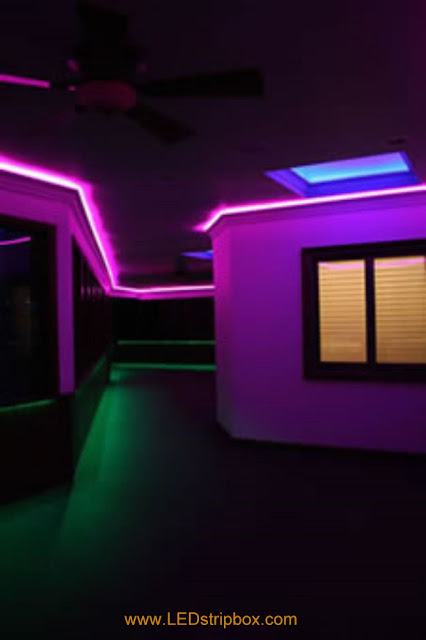

These color changing LED strip convert what would have been a black depressing corridor into an attractive area.  Motion-activated LED puck lighting convert on as you stroll down the corridor, outlined by RGB LED strips placed under the windows and above the top creating.  For this venture, we used 24 comes of our RGB versatile LED remove, 1 in each skylight experiencing up, 11 trapped on the walls behind top creating and 11 under the windowsills experiencing down.
Website:http://www.ledstripbox.com

Details and Other Ideas

For a longer period operates (we recommend that you use the 24V LED Strip  fold pieces (instead of the 12V) so that you need less energy supply cables.  In this example, we used 18-4 supply cable and ran it from the firm to roughly every third move.  All of the comes are linked end to end and the supply cables are spliced inbetween the comes.

DMX Get in touch with Display Shade Wheel The DMX Get in touch with Display Operator has 4 Areas.  We used 1x for the skylight, 1x for the roof, 1x for the ground, and the last for the puck lighting outside (you could management the zones with any of our RGB remotes but for this venture, our client desired to use the DMX touch screen color wheel- it is very fun to use!)

3x DMX Decoders If you use one of our DMX remotes, you will need one of our DMX Decoders for each Place (each area which you want separate management over).  If you use a non DMX controller, you do not need to use these.

2x RGB Guitar amp 8A/Ch In this example, the greatest run contains 11 comes linked together.  This is too much for the DMX Decoder (or RGB controller) to deal with by itself; therefore we used an Guitar amp (installed after the DMX decoder or RGB controller).  For this venture we required a huge one, so we used one ranked for 8A/Ch (if we used the 12v pieces we would have required 2x Built-in amps already built in per zone or 12A/Ch).

350W 24V Power Supply For the lengthy operates, we used a huge energy (at now not available on our site).

96W 24V Power Supply To link the skylights together, we used a 96W 24V energy attached to the DMX Decoder and then out to each remove (no firm was required as there were only 2x rolls).

Wiring Diagram If you have bigger tasks, please you can call us.  We would be grateful to help you style your DIY venture.  If you would like a certain item that's not detailed on our web page, please let us know.
